Slimline Sealing Washers

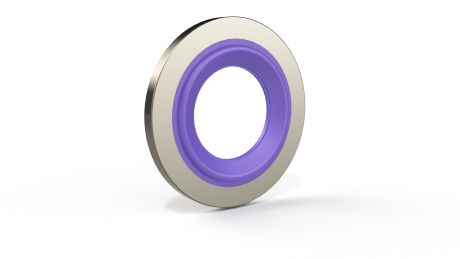

The slimline ring is a sealing solution for the axial application of air-conditioning fittings, replacing radially clamped O-rings (standard air-conditioning fittings). The slimline ring is a metal ring inside which an elastomer ring with a trapezoidal cross-section is bonded and vulcanized. Our violet EPDM elastomer blend offers optimized chemical resistance to R1234yf and is approved by many automotive OEMs: BMW, Daimler and General Motors. The metal insert is made of carbon steel (cold-rolled and cold-worked strip) and protected by an anti-corrosion treatment (Zn-Ni).
Available elastomer compositions: EPDM and HNBR
Features
- Compatible with R134a and R123yf fluids
- Material certified by leading automotive OEMs
- Metal insert: carbon steel (cold-rolled and cold-worked strip), aluminum or stainless steel
- Anti-corrosion treatment: Zn-Ni
- Axial application
- Standard dimension list (generic dimensions for air-conditioning fittings)
Benefits
- Chemical resistance
- Very low permeability
- Reduced costs, as no groove machining is required
- Easy assembly and installation
- Distinguish between two identical-looking joints (Poka-Yoke)
